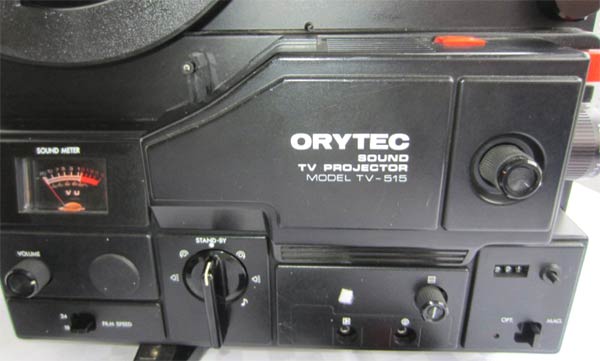

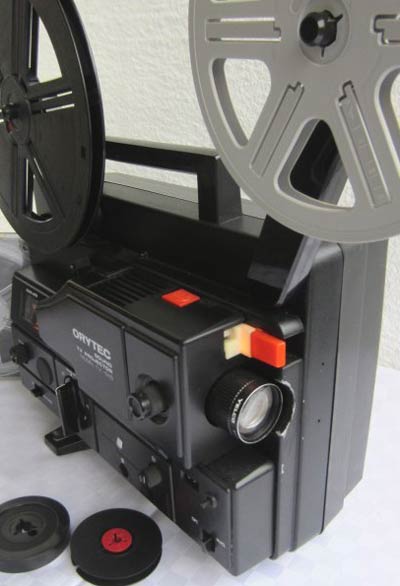

Orytec Sound TV Projector Model TV-515

marketed in 198?

super 8 mm film

lens: TV-Optic f: 1.2 \ F: 21-43 mm

lamp: 100 W, 12 V, EFP

lamp settings: ?

reel capacity: 240 m (rear reel holder), 360 m (front reel holder)

projection: forward, reverse

projection speed: 18, 24 fps (8-bladed shutter)

speed adjustment control: ?

film counter: 3 digits

film loading: fully automatic reel to reel threading

sound: magnetic and optical playback on main sound track

sound mode: mono

amplifier: transistorized

amplifier output: ?

frequency response: ?

sound controls: volume only

VU meter: yes

recording: not available

input terminal: no

output terminal: Line-Out, Monitor

output jacks: 3.5 mm diameter jacks

built-in speaker: yes

built-in film cutter: yes

motor: electronically governed DC magnetic motor

power source: 200-220-240 V AC, 50 Hz, 140 W

weight: ?

dimensions: ?

made in Japan by Yamawa
